Dell Pro 7-in-1 USB-C Travel Hub - DA310

The Dell 7-in-1 USB-C Multiport Adapter is a compact and portable multiport 7-in-1 adapter that can connect to just about any device you have. Its downstream USB-C port supports power pass through and is ideal when your laptop does not have any more USB-C charging ports.

Widest variety of ports: Featuring the widest range of ports available that includes 2 USB-A ports, 1 USB-C, 1 HDMI, 1 DisplayPort, 1 VGA and 1 RJ-45 port. The mobile adapter offers seamless connectivity to various devices like monitors, projectors, headsets, keyboard, mouse, flash drives and other accessories.

Multi-functional USB-C port: With a USB-C downstream port that supports power pass through, video and data, you can connect to a monitor at up to 4K resolution at 30Hz, get up to SuperSpeed USB 10Gbps data transfer and 90W power pass through to your laptop.

Crisp 4K resolution at 60Hz: Connect to high-resolution displays without compromising on performance, as the adapter supports 4K resolution at 60Hz. Simply connect your monitor or projector to your PC via DisplayPort or HDMI 2.0 port on your adapter.

SuperSpeed data transfers: Two USB-A and one USB-C downstream ports let you connect to other supported peripherals and enjoy fast file transfers up to 10 Gbps SuperSpeed

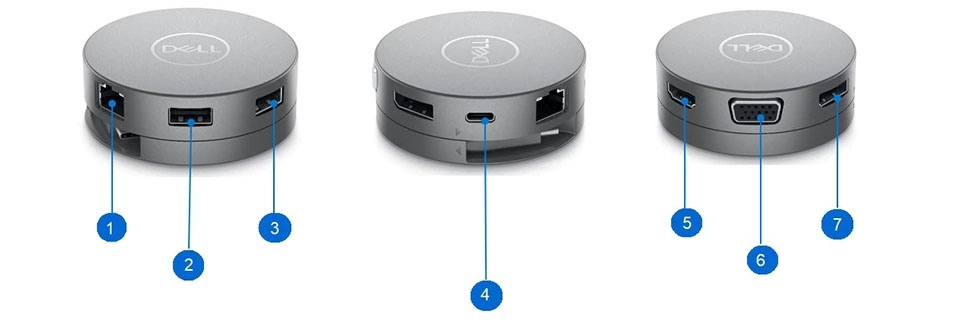

Ports & Slots

1. RJ-45 | 2. USB-A 3.2 Gen2 | 3. USB-A 3.2 Gen2 | 4. USB-C (Multifunctional with up to 90W power pass through, 4K@30Hz, USB 3.2 Gen2) | 5. HDMI 2.0 (up to 4K@60Hz) | 6. VGA | 7. DisplayPort (up to 4K@60Hz)

Tech Specs
General

Product Type
Multiport adapter

Width, Depth, Height
6.98 cm, 6.98 cm, 2.45 cm

Weight
80 g

Video Max Resolution Details
●3840 x 2160 - 60 Hz (DisplayPort only)
●3840 x 2160 - 60 Hz (HDMI only)
●1920 x 1080 - 60 Hz (VGA only)
*Only one video output is supported at a time.

Connectivity Interfaces
2 x USB-A 3.2 Gen 2 - 4 pin USB Type
1 x USB-C 3.2 Gen 2
1 x display / video - HDMI*
1 x display / video - VGA*
1 x display / video - DisplayPort*
1 x network - Ethernet 1000 - RJ-45

Power Delivery (PD)
Supports max 90W PD passthrough
DA310 with USB-C power Input / Output
130 Watts / 90 Watts
90 Watts / 75 Watts
65 Watts / 50 Watts
45 Watts / < 45 Watts No power charging
*Please refer user guide for more details.

Cables Included
1 x USB-C cable - integrated - 12 cm (4.7 Inch)

System Requirements
OS Required
Apple MacOS, Red Hat Enterprise Linux, Ubuntu, Google Chrome OS, Windows 10 (64-bit), Windows 11 (64-bit)
