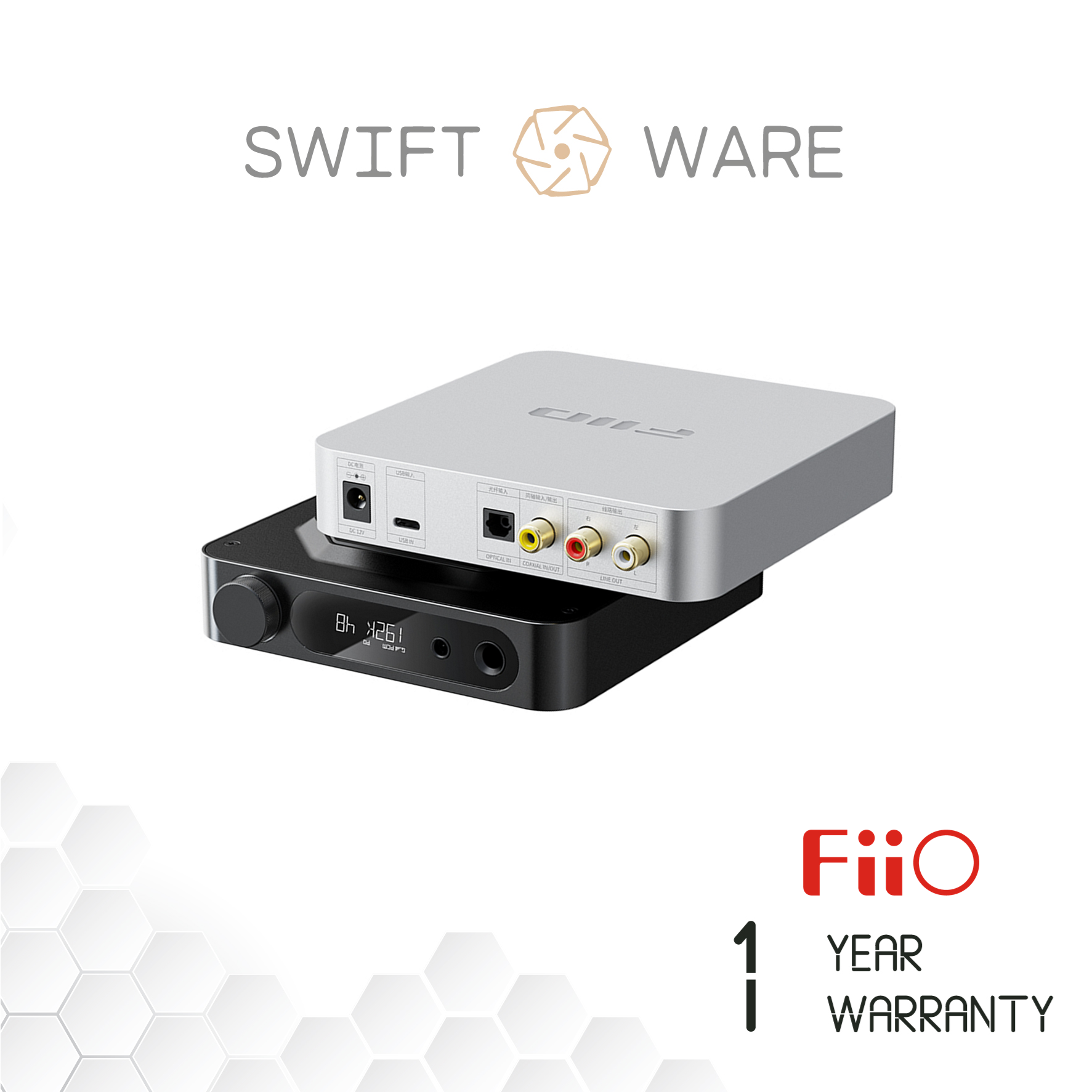

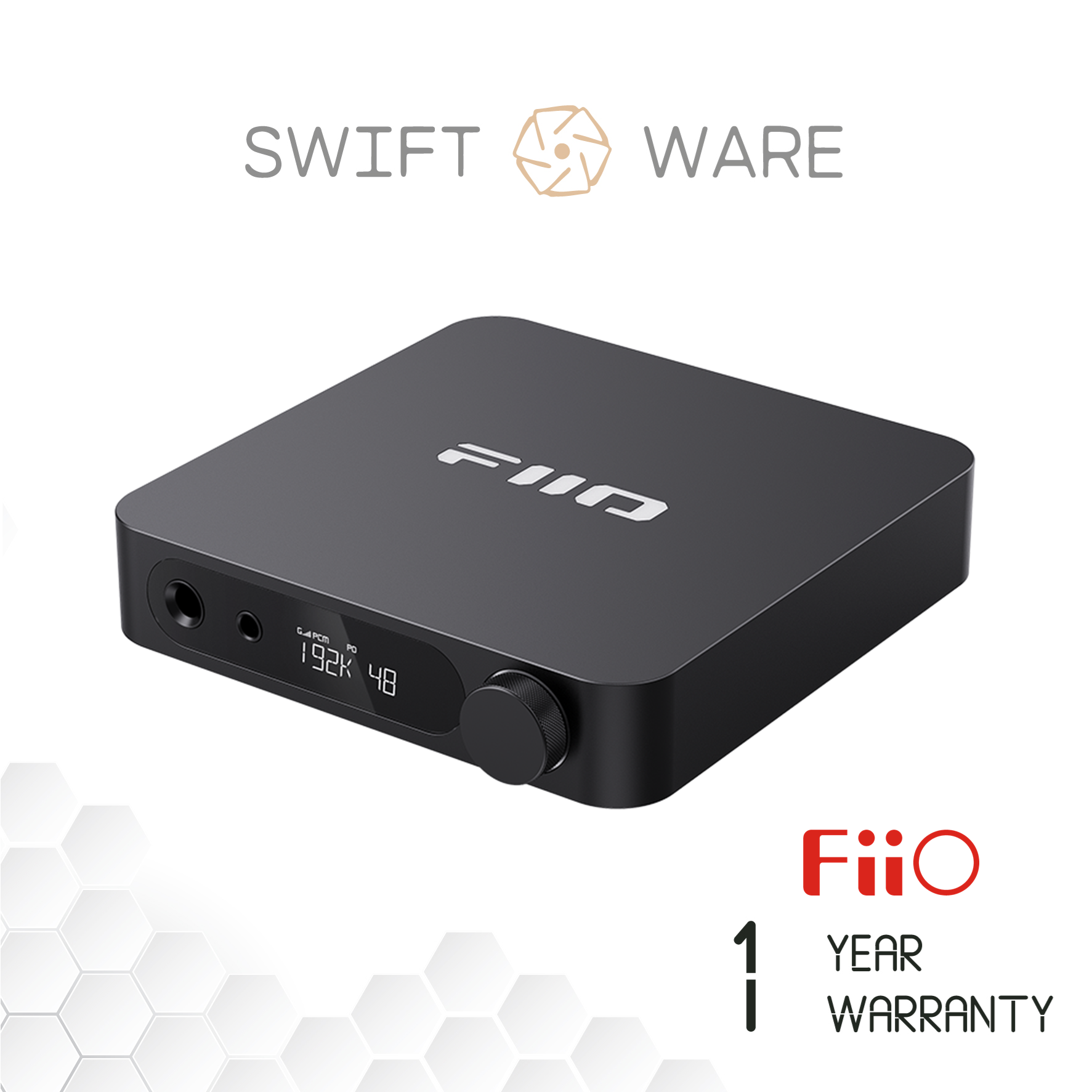

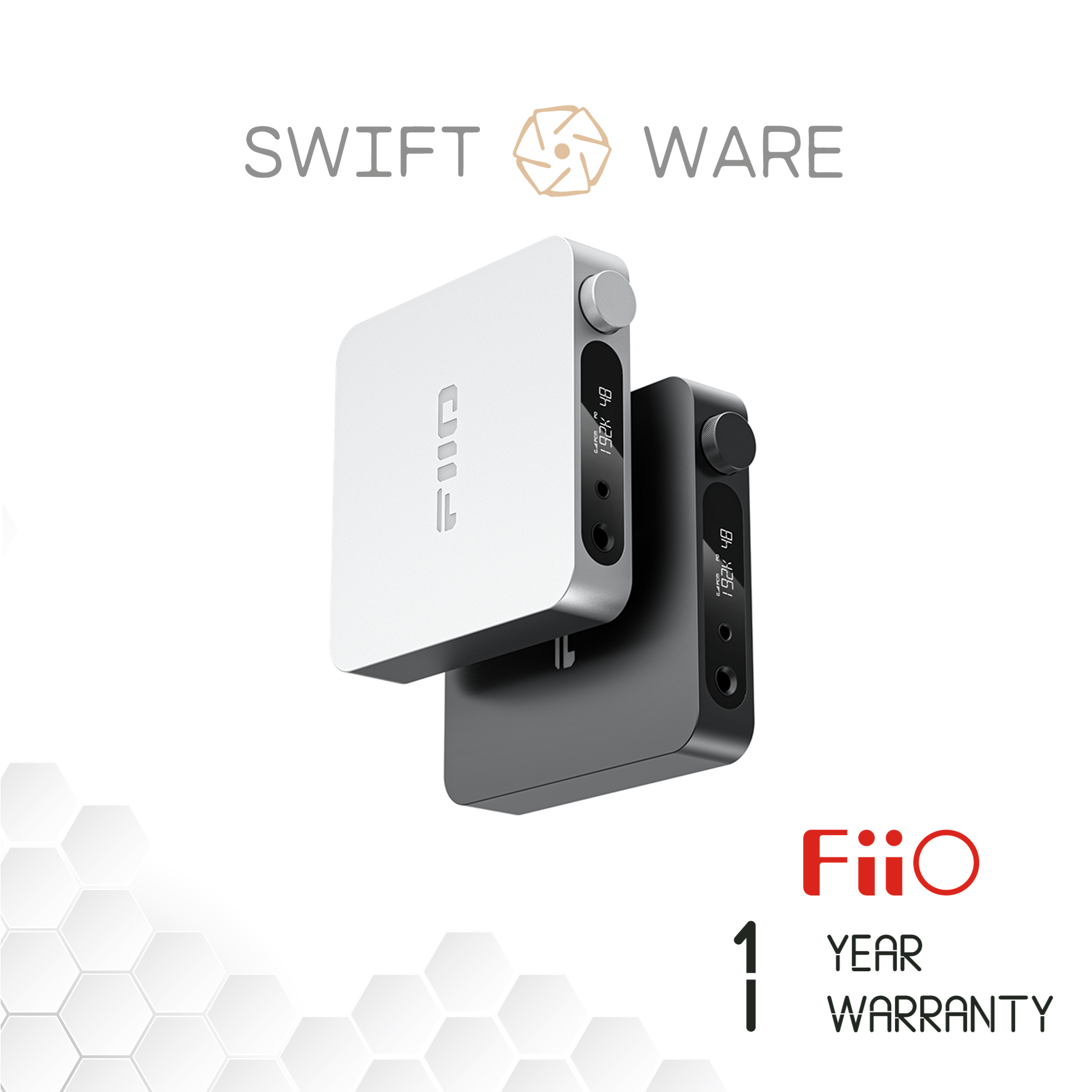

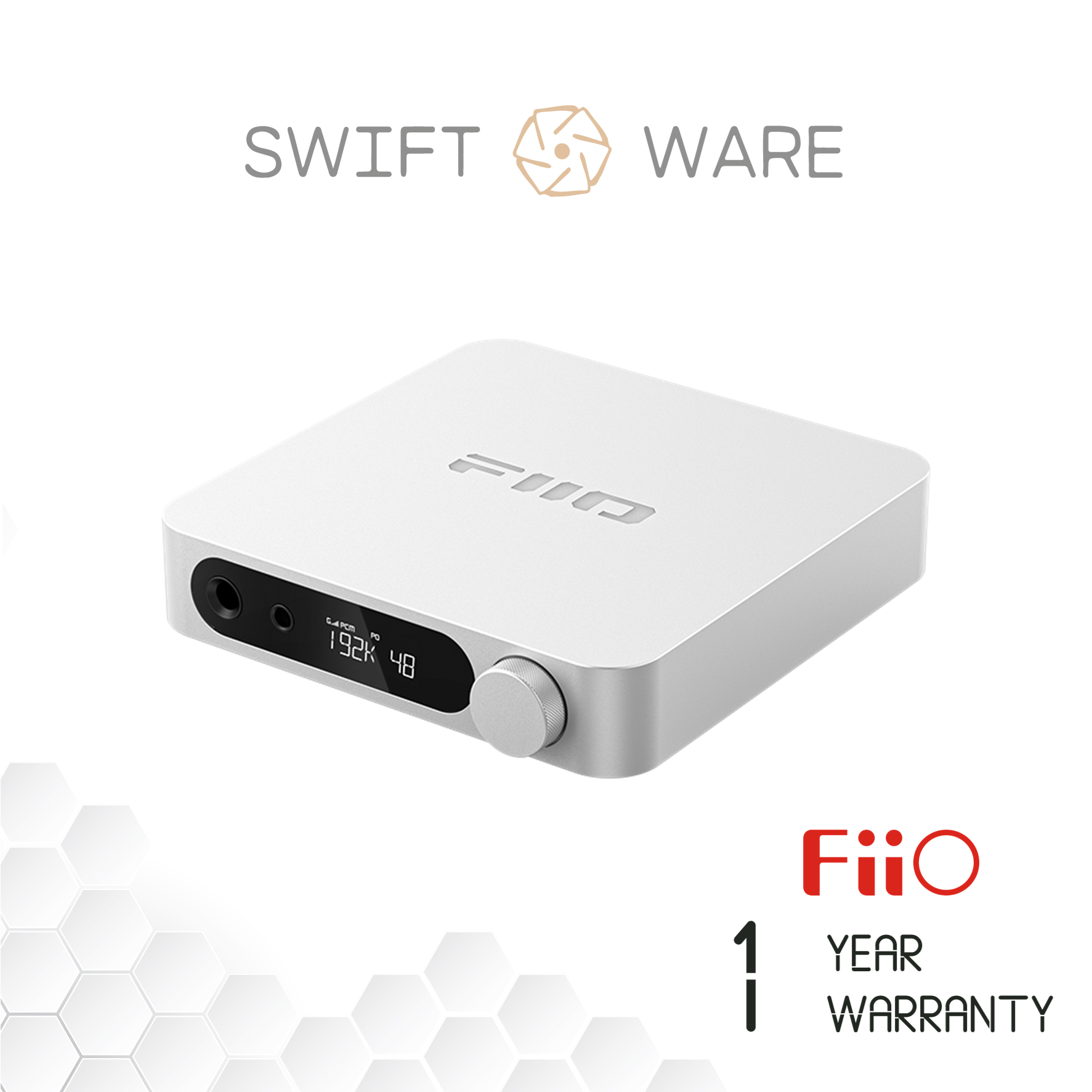

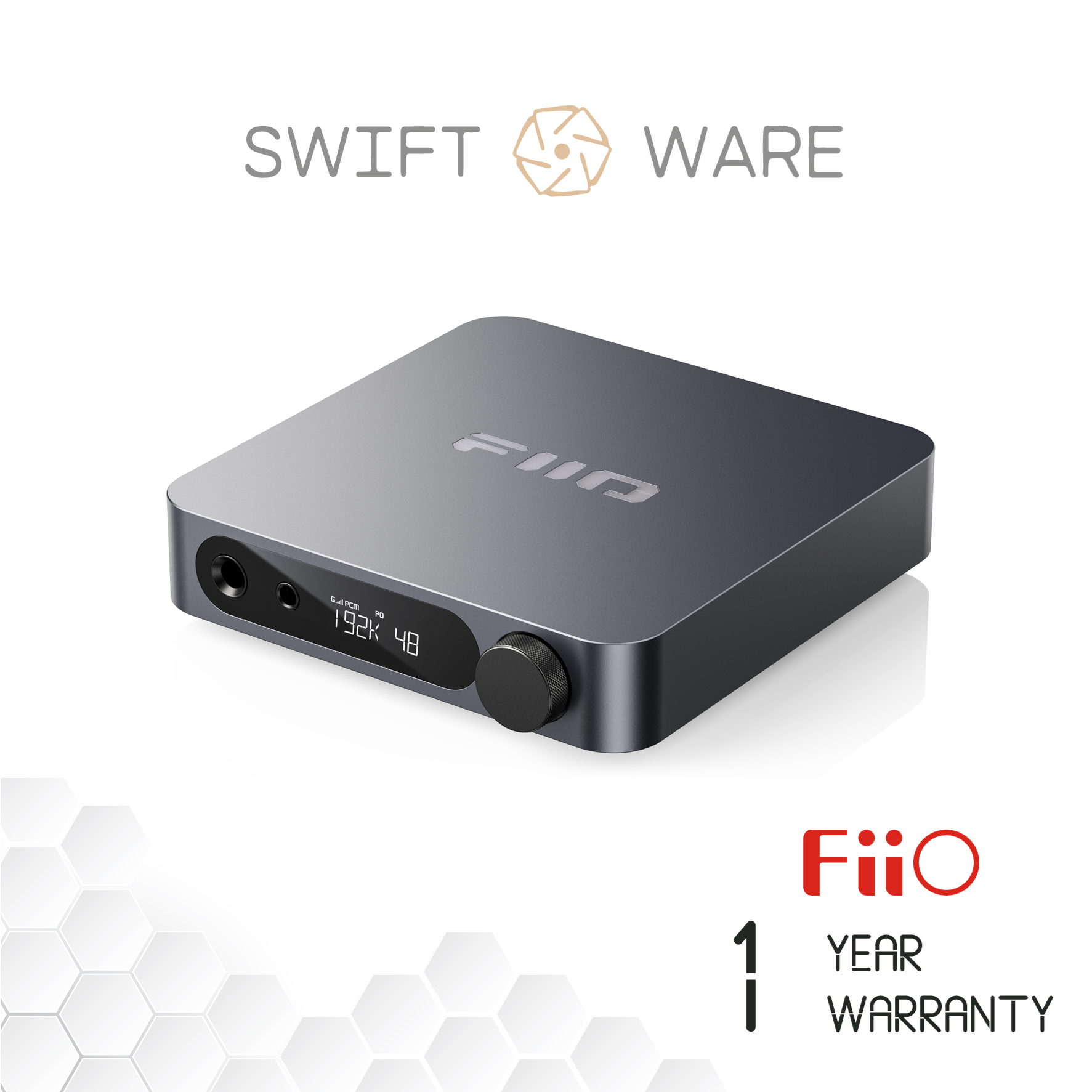

FiiO K11 Desktop DAC & Headphone Amplifier

K11 will feature lots of connectors, large power output, and a slim build. The beautiful screen is a display of its prowess as your desktop HiFi companion.

Variety inputs and outputs

USB, Optical and coaxial inputs, 4.4mm, 6.35mm, RCA line-out, and coaxial outputs.

The K11 used in USB DAC mode does not require a driver on Windows 10 and above systems, and can also be used with video game consoles such as the PS5 and the Switch. Simply plug and play for worry-free usage whether you are enjoying music or being immersed in games.

3 gain levels 3 volume curves

K11 has 3 separate gain levels, each gain level have its own volume curves. This allows the K11 to give you a better listening experience with various types of headphones, whether you are using sensitive earphones or harder to drive over-ear headphones.

Beautiful screen Full of Clarity

A custom, high-contrast and durable LCD screen allows you to easily see the sampling rate, volume, gain, or output mode with just a glance.

The slim aluminium alloy body allows you to easily place the K11 anywhere. Thanks to the silicone anti-slip pad, K11 rests stably and firmly on your table too.

General Specifications

Model

K11

Color

Black/Silver/Titanium

Dimensions

147x133x32.3mm (Including feet)

Weight

407g

Gain

L/M/H

Driver-free mode (switch mode)

Supported

Max supported sampling rate

384kHz-32bit/DSD256  Native 16/24/32bit (USB DAC)

192kHz-24bit (Coaxial)

96KHz-24bit (Optical)

Hardware solution

SoC: GD32F303RE, DAC:CS43198

USB decoding: SA9312L

SPDIF decoding: MS8422N

AMP: SGM8262-2*2

Adaptive impedance

PO: 8~150Ω

BAL: 8~350Ω

Sampling rate indication

Show on display screen

LOGO indicator light shows as default: Cyan: 48KHz and below/Yellow: 48kHz and above/Green: DSD

Volume control

Volume knob

Audio Parameters

Parts of performance and parameters of Line-out output (RCA)

THD+N & Noise

＜0.00035% (1kHz/-0.3dB@10KΩ)

SNR

≥126dB (A-weighted)

Crosstalk

≥120dB

Noise floor

＜0.9uV (A-weighted)

Frequency response

20Hz~50kHz: damping＜0.1dB

20Hz~20KHz: damping＜0.1dB

Line output level

1.95Vrms

　 　 　

Parts of performance and parameters of headphone output (6.35mm)

Output power

L+R≥720mW +720mW (16Ω, THD+N＜1%)

L+R≥520mW +520mW (32Ω, THD+N＜1%)

L+R≥60mW+60mW (300Ω, THD+N＜1%)

Output impedance

＜1.2Ω

Crosstalk

≥71dB

Peak output voltage

12Vp-p

SNR

≥123dB (A-weighted)

THD+N & Noise

＜0.00059% (1kHz/-8.1dB@32Ω)

Frequency response

20Hz~50kHz: damping＜0.2dB

20Hz~20KHz: damping＜0.1dB 　 　

Noise floor

＜2.8uV (A-weighted)

Parts of performance and parameters of headphone output (4.4mm)

Output power

L+R≥570mW+570mW (16Ω, THD+N＜1%)

L+R≥1400mW+1400mW (32Ω, THD+N＜1%)

L+R≥250mW+250mW (300Ω, THD+N＜1%)

Output impedance

＜2.4Ω

Crosstalk

≥106dB

Peak output voltage

24.5Vp-p

SNR

≥123dB (A-weighted)

THD+N & Noise

＜0.0010% (1kHz/-14.5dB@32Ω)

Frequency response

20Hz~50kHz: damping＜0.2dB

20Hz~20KHz: damping＜0.1dB

Noise floor

＜4.9uV (A-weighted)

Buttons and Ports

Knob

Encoder knob (including volume adjusting and menu confirming)

USB

Type-C (data transmission)

Single-ended line-out

RCA port

Digital optical in

Optical port

Digital coaxial in

RCA port

Digital coaxial out

RCA port (only works in USB mode)

balanced output interface

standard 4.4mm socket

Headphone out

Standard 6.35mm port

Power Supply

DC 12V/2A

Battery capacity

No battery
