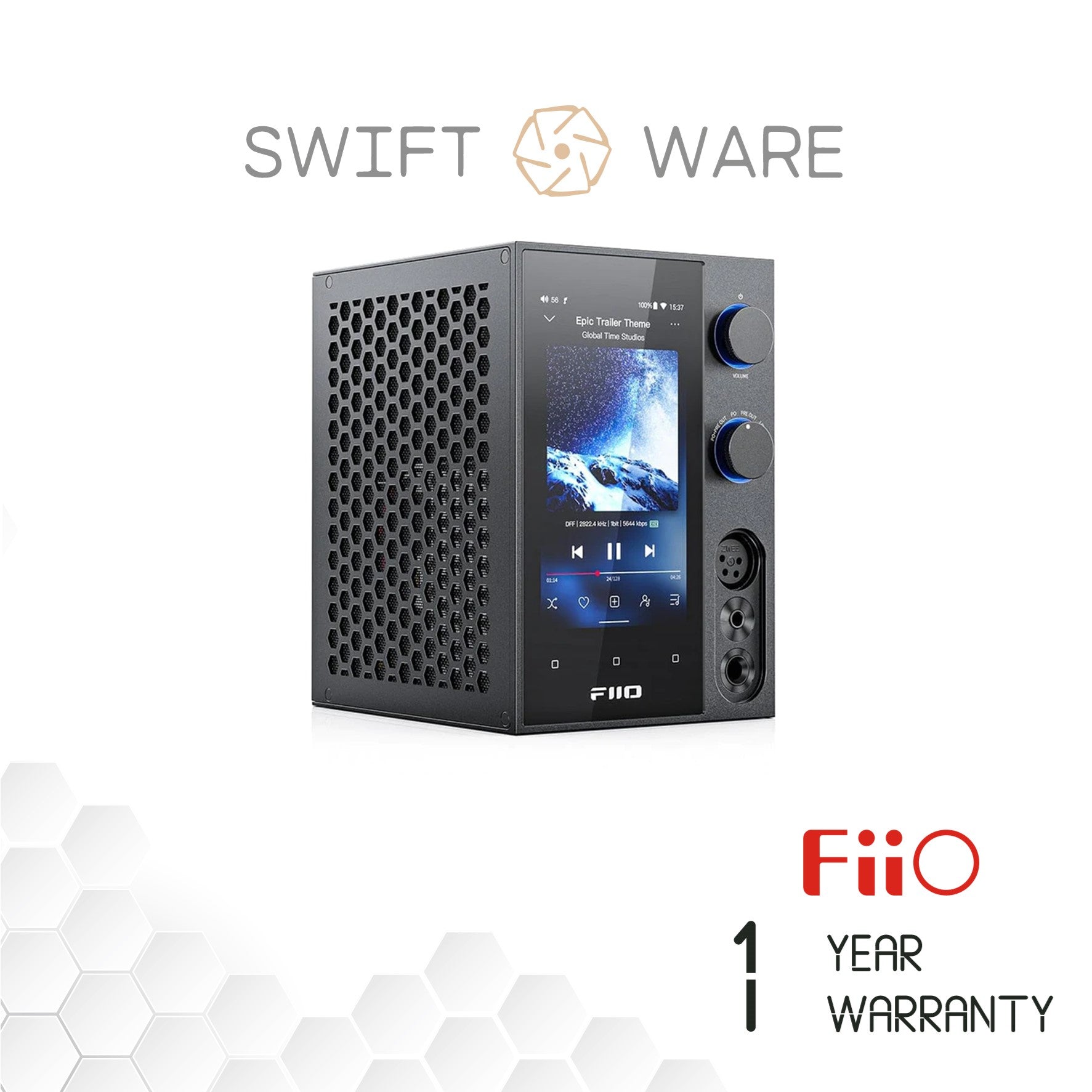

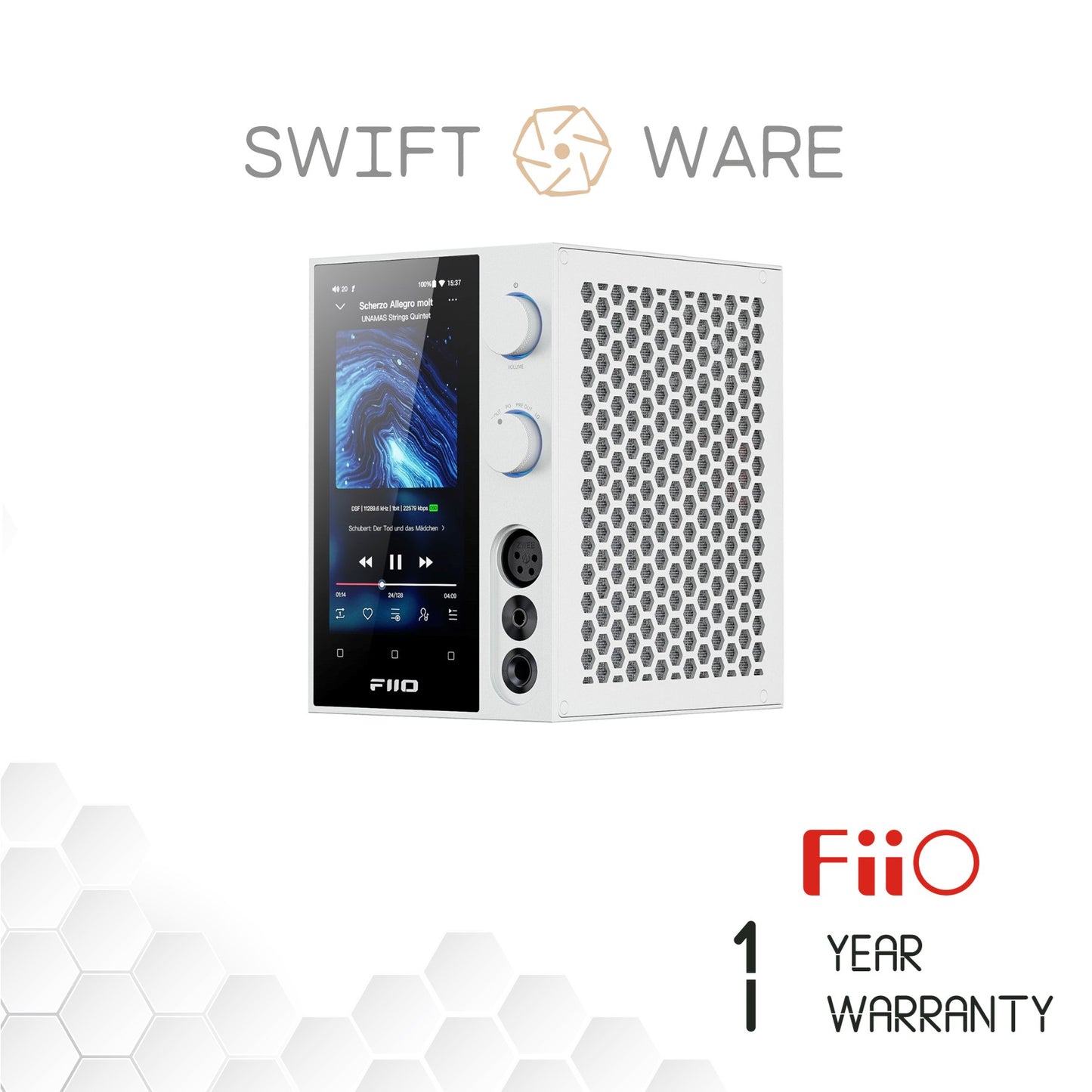

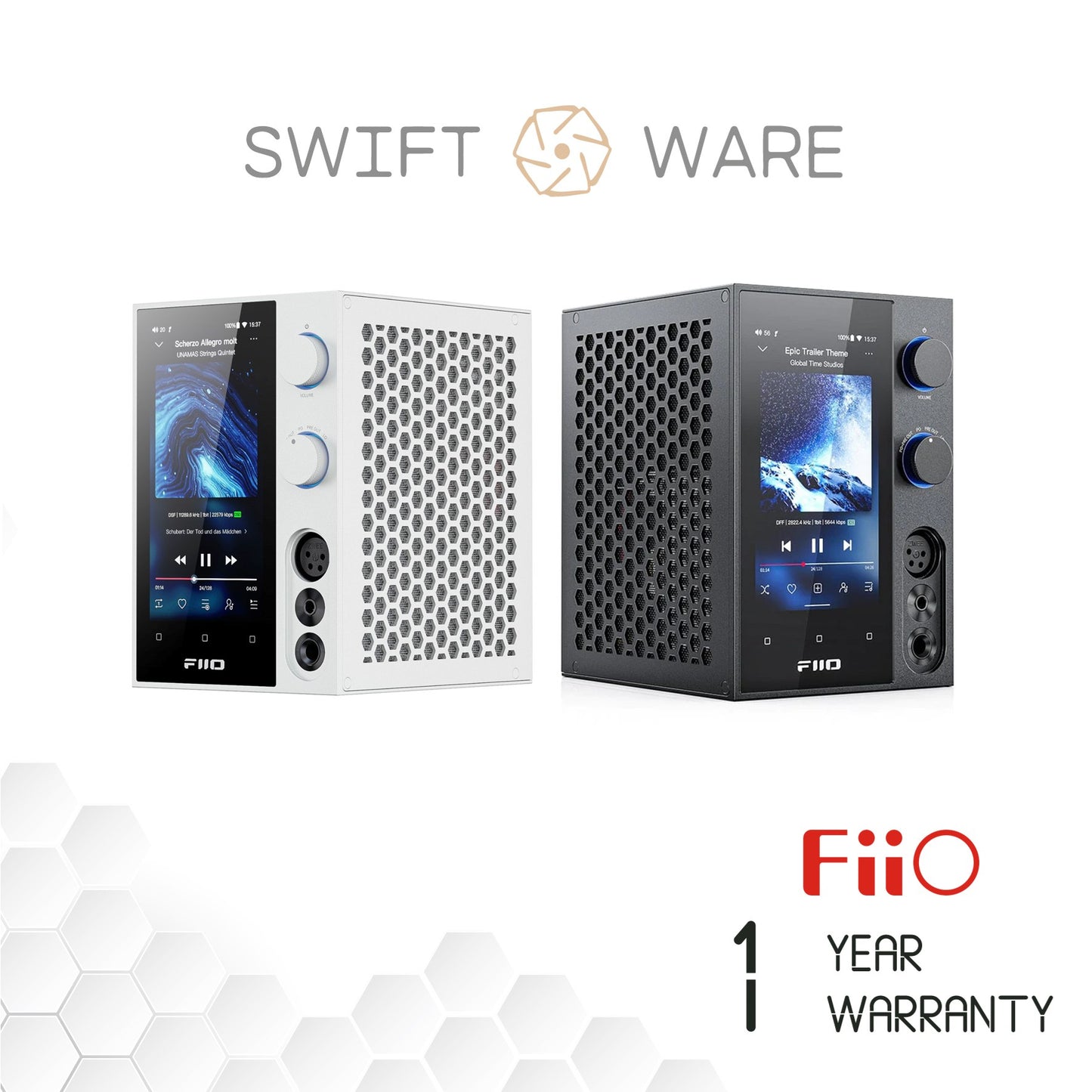

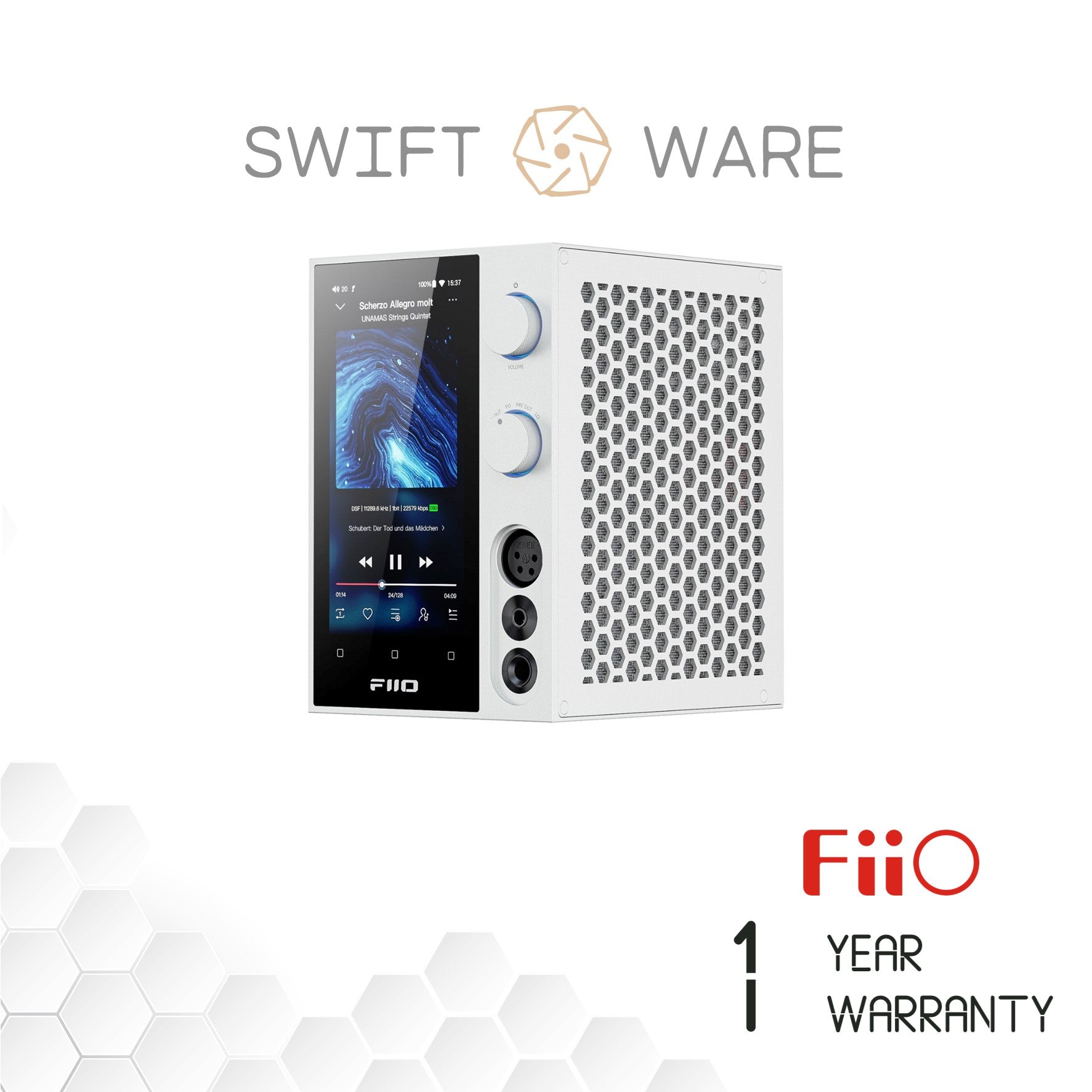

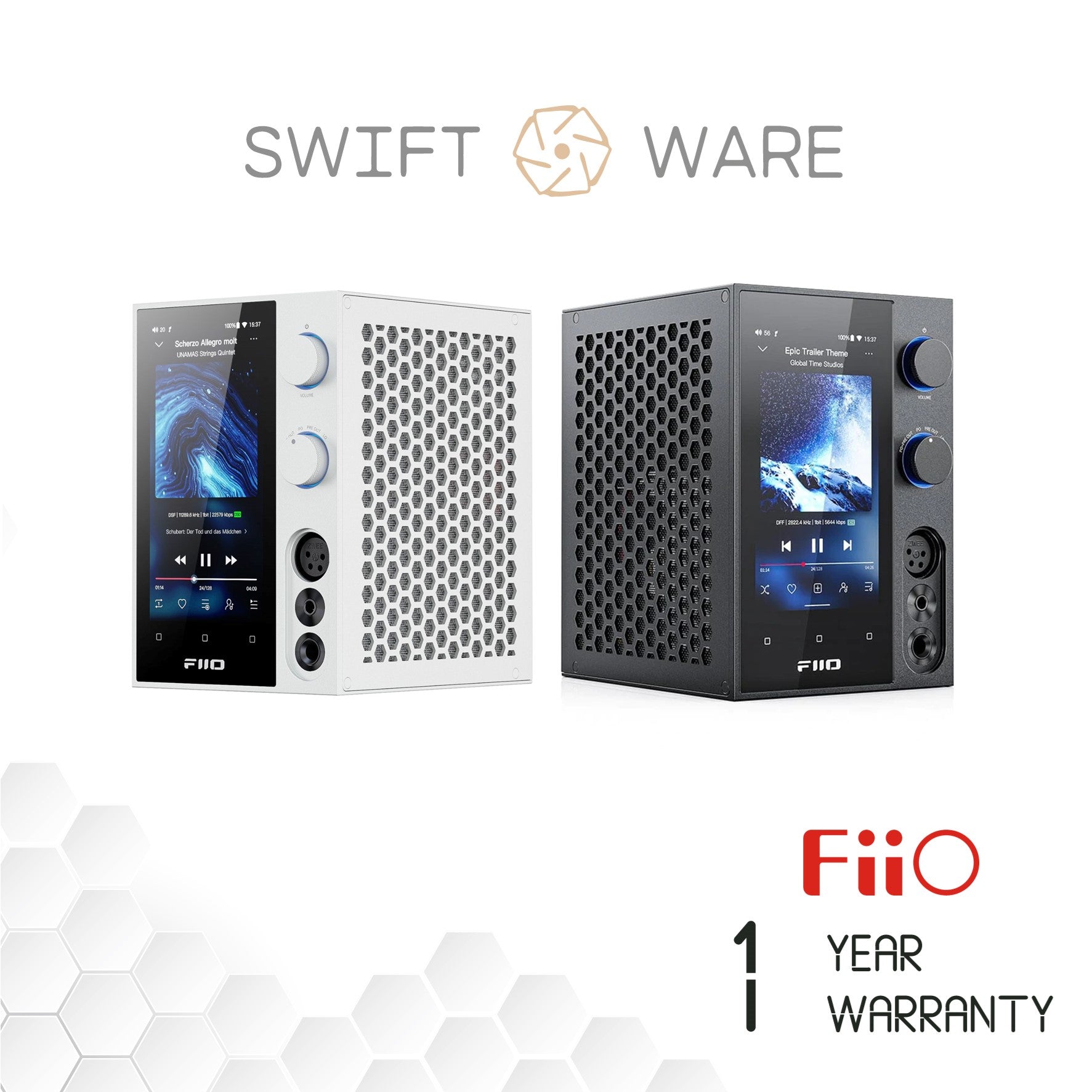

FiiO R7 Desktop High-Resolution Transmitter, Decoder, and Headphone Amplifier All-in-one Unit
FiiO R7 Desktop High-Resolution Transmitter, Decoder, and Headphone Amplifier All-in-one Unit
Full range of inputs and outputs | Four output models | DC/AC dual power supply
Eight operating modes | ES9068AS+THX AAA 788+*2 | Five gain levels 3.6W output power | Potrait media streaming | Snapdragon 660+Android 10
Customizable RCB lights | Ethernet port | Personalized screensaver
Exclusive DP mode | Dual USB ports
Building a desktop HiFi system has always been full of compromises. Stacking various brands of equipment together makes it to hard have an elegant and compact setup. For streaming media, such a setup usually brings an unacceptable experience. But now there is a new solution. You can go with the FiiO Music app or a Bluetooth remote control, allowing you to control your music from a distance and conveniently handle various operations with ease.
Many Outputs with just a turn of a knob
No need to plug and unplug cables, as you can conveniently switch between the POL/LO/PRE OUT/PO+PRE OUT outputs simply by turning a knob
●PO: Only front audio outputs are active
●LO: Only rear audio outputs are active (fixed at max output)
●PRE OUT: Only rear audio outputs are active (adjustable volume)
●PRO+PRE OUT(default): both front audio outputs + rear audio outputs (adjustable volume) are active
Key Specifications
Amplification: 2 x THX AAA-788+.
DAC: 2 x ESS ES9068AS.
SoC: Qualcomm 8-Core Snapdragon 660.
Operating System: Android 10.
Modes: Android Mode/Pure Music Mode/USB DAC Mode, Bluetooth Receiving Mode, Airplay Mode, COAX Mode, Optical Mode, Roon Ready.
RAM: 4GB.
ROM (Internal Storage): 64GB.
Expandable Storage: up to 2TB (Micro SD).
Screen: 4.97" / 720 x 1280 Resolution.

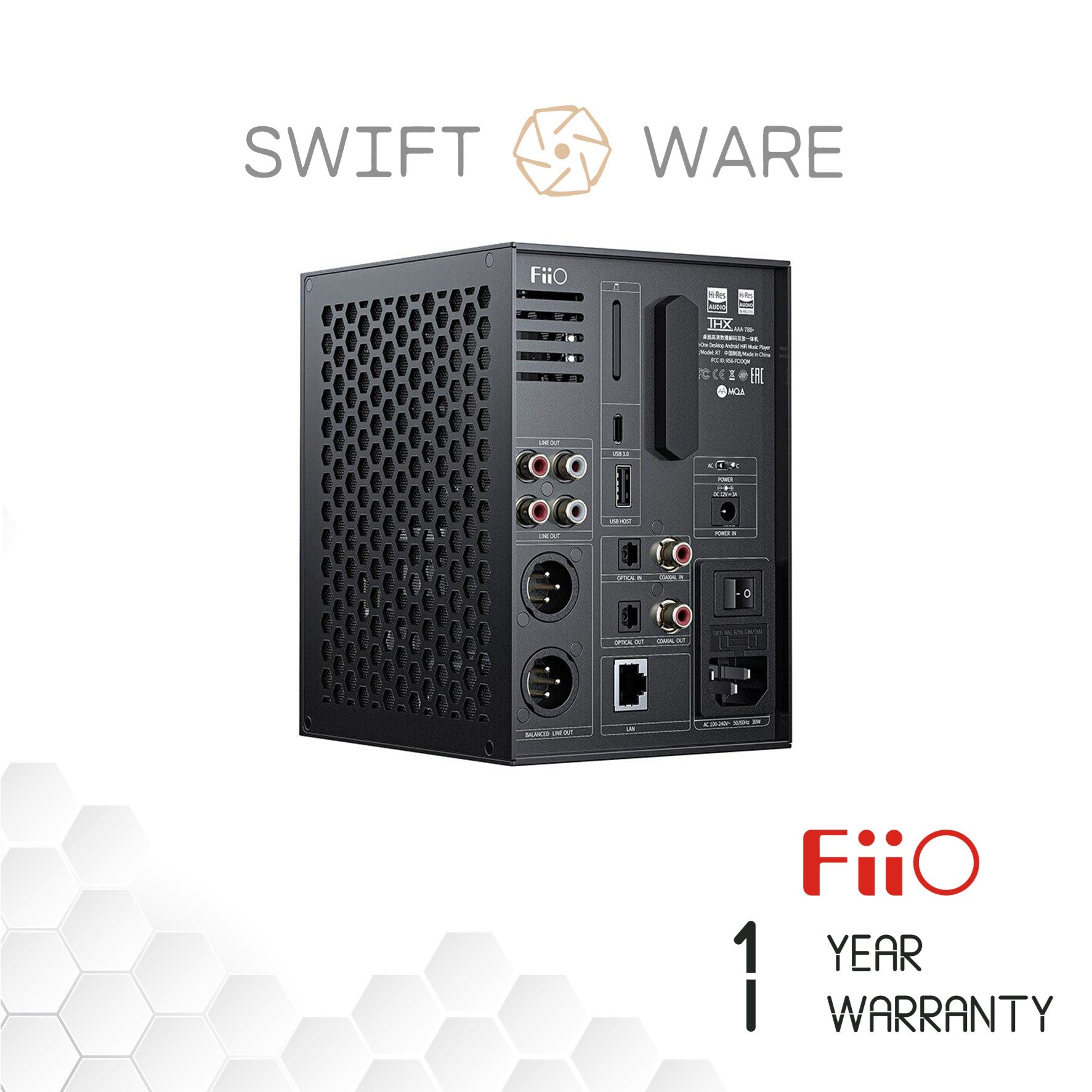

Inputs, 1 x Optical (TOSLINK), 1 x COAX (RCA), 1 x USB A (USB 2.0), 1 x USB C (USB 3.0). 1 x 100M Ethernet Port.
Outputs: 1 x 4.4mm (Balanced), 1 x 6.35mm (Single-ended), 1 x 4-pin XLR (Balanced), 1 x Optical (TOSLINK), 1 x COAX (RCA), 2 x Single-ended line out (RCA), 2 x 3-Pin XLR (Balanced)
Wi-Fi: 2.4GHz / 5GHz.
DLNA Support: Yes.
Airplay: Yes.
Roon Ready: Yes.
Bluetooth Version: 5.0.
Bluetooth codecs: SBC/AAC/aptX/aptX HD/LDAC/LHDC.
Bluetooth Receive: SBC/AAC/LDAC.
MQA Support: Yes (8x).
Maximum sampling rates∷ USB DAC: 384kHz/32Bit, DSD256 (Native).
Local Decoding: 384kHz/32Bit, DSD256 (Native).
USB Audio: 768kHz/32Bit, DSD512 (DoP/D2P/Native).
COAX Input: 192kHz/24-bit.
COAX Output: 384kHz/24-bit, DSD128 (DoP).
Optical Input: 96kHz/24-bit.
Optical Output: 192kHz/24-bit.
Dimensions: 110 x 134 x 160mm.
Weight: 1.28kg
