MartinLogan Abyss 10" Subwoofer

MartinLogan Abyss 10" Subwoofer

$2,619.00 SGD
$2,619.00 SGD
Sale Sold out
Tax included.
Color

MartinLogan

Supercharged Performance. Miniaturised Size.

Like its smaller sibling, Abyss 8, the Abyss 10 provides deceptively strong, yet detailed sound thanks to its 10" Hybrid Woofer System. Abyss 10 utilises a pair of 10" radiators to bolster its active 10" woofer, resulting in even higher levels of output capability and deeper low frequency extension.



This woofer system is driven by powerful amplification, and a precision DSP engine, all constrained inside an elegant 1" thick cabinet. To complement the impressive output and speed of Abyss 10, MartinLogan engineers included a variety of connections ranging from XLR to the built-in wireless option.

Abyss 10 also features MartinLogan's powerful and intuitive control app for convenient setup and adjustment, as well as being compatible wiht the award-winning Anthem Room Correction (ARC®) system.



SPECIFICATIONS

Digital Signal Processing
Ultra High-Resolution 500MHz Vojtko DSP Engine with 64bit processing

Frequency Response
22-120 Hz ±3 dB (Anechoic via LFE input)

Low Frequency Transducer
Triple 10" (25.4cm) Hybrid Woofer System consisting of a single high-excursion, anodised-aluminium cone in a stamped steel basket with dual anodised-aluminium cone passive radiators

Cabinet
Precision-crafted, sealed MDF enclosure featuring a robust 1-inch thick MDF structure with reinforced woofer baffles and center brace

Amplifier
Magnitude MT-1.6kW Amplifier with 1,600W peak (800W continuous)

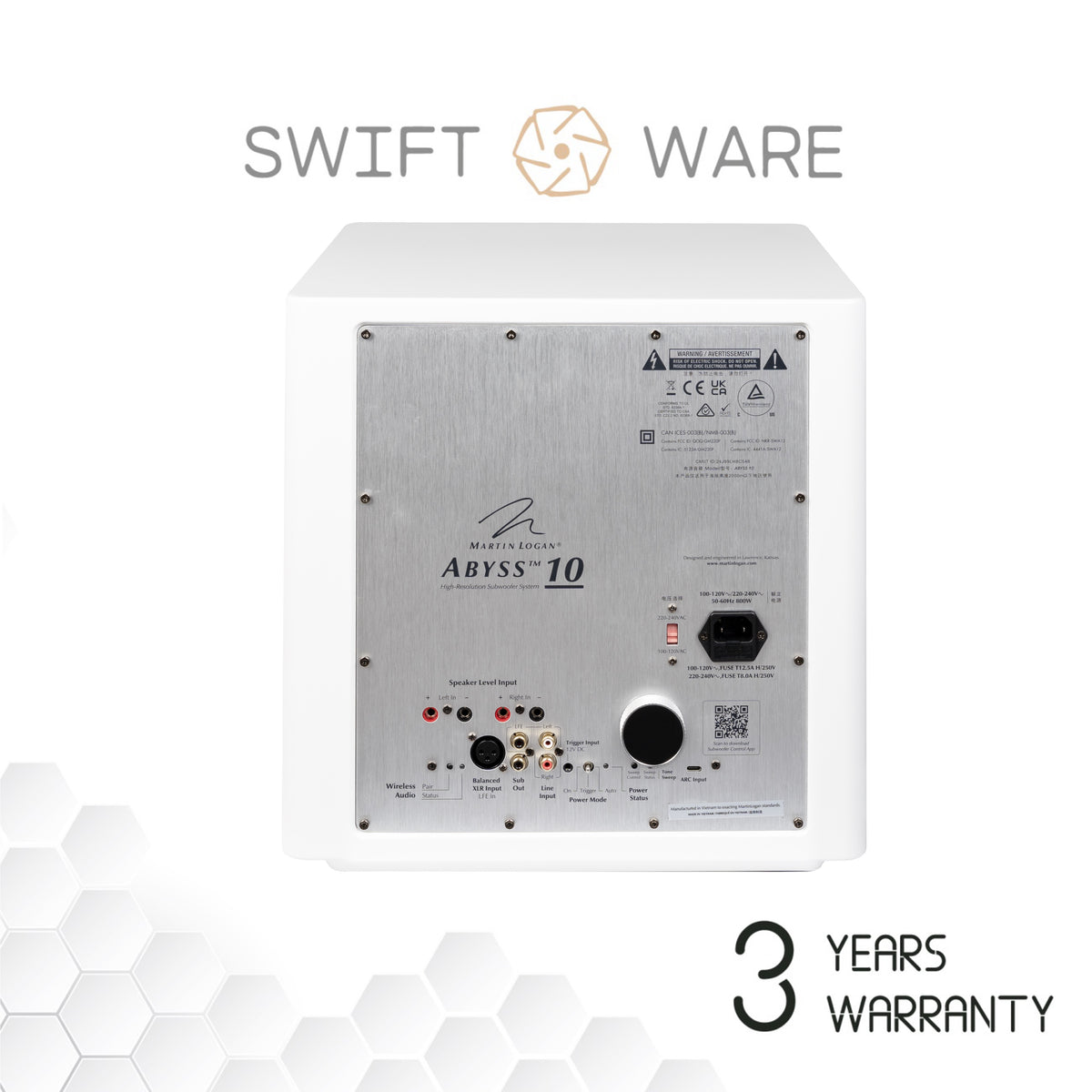

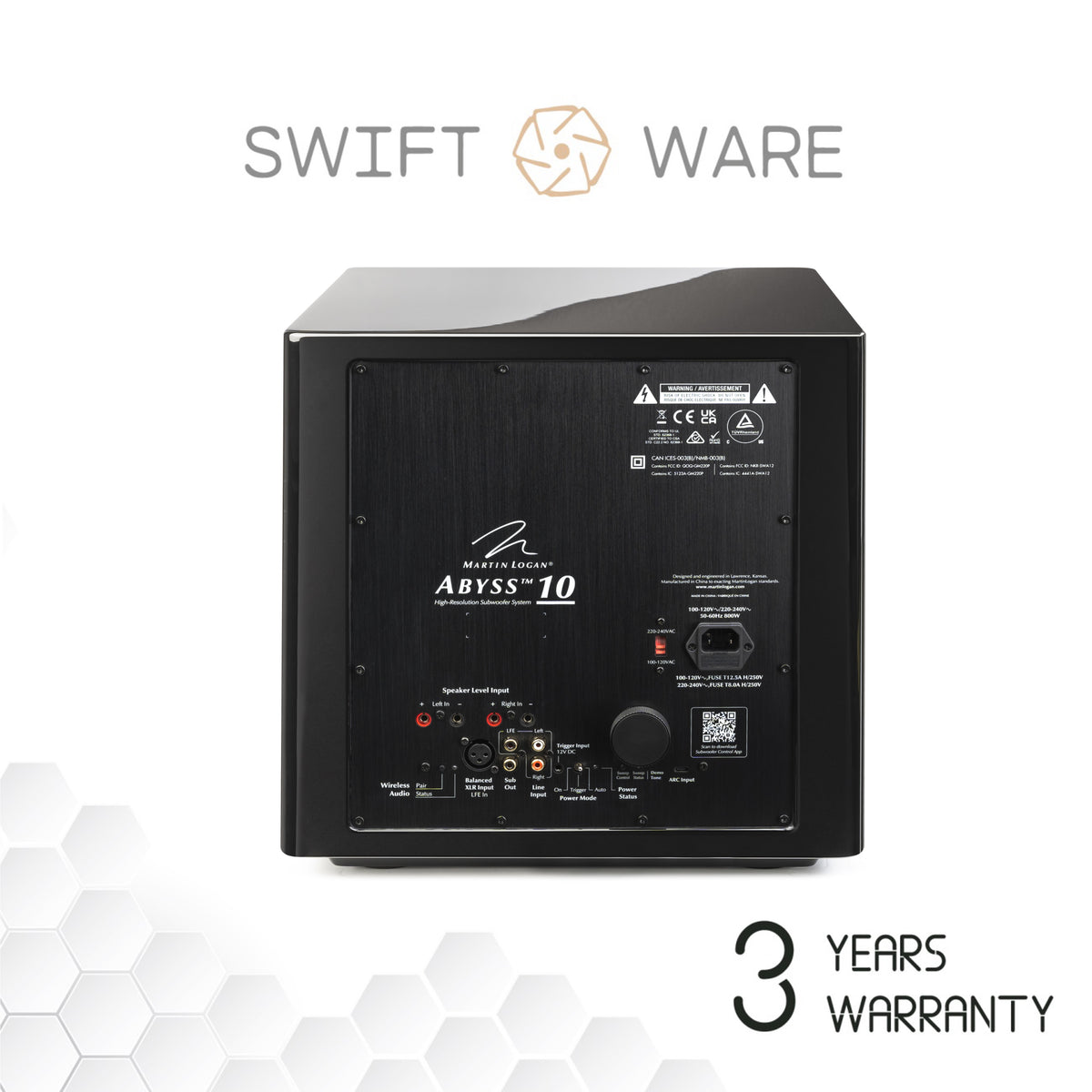

Controls (Backplate)
Level: Interactive LED Backlit Knob
Tone Sweep: Sweep Start and Pause (with status light)
Power Mode: On, 12v Trigger, Auto
Wireless Audio Pairing Button (for included MartinLogan wireless transmitter)
Controls (via Bluetooth)
Level: -40 to 12dB (Min-Max)
Low-Pass Filter (Frequency): 35–120Hz (1° Increments)
Low-Pass Filter (Order): Bypass, Third, Fourth
Phase: 0–180° (1° Increments)
Phase (Polarity): Normal, Inverted
Preset Listening Modes: Movie, Music, Night
20–30Hz Level: ±10dB
Anthem Room Correction (ARC Genesis): On, Off
Tone Sweep (120-20Hz): On, Off, Pause (Frequency)

Wireless Inputs
Integrated Wireless Receiver, Wireless Transmitter Included

Inputs
Line Level: Left, Right, and LFEXLR: LFE
Speaker Level: Left and Right (requires banana plugs)

Power Draw
Max: 800W

Standby (Wireless Disabled): 0.5W
Standby (Wireless Enabled): <2W
*Transmitter and Subwoofer combined

Feet
Integrated Anti-VIbration Feet (carpet spikes included)


Fine-Tune Your Subwoofer Settings with MartinLogan's Intuitive App

By far the most convenient way to adjust a subwoofer, MartinLogan’s Subwoofer Control app for iOS and Android devices allows you to easily adjust settings such as Volume, DSP Mode, Phase, and many others right from the comfort of your seat for ultimate control and ease of tuning.

Built-In Wireless Capability

Although correct placement plays a key role in optimizing subwoofer performance, getting a cable where you need it can be challenging. For ultimate convenience, our Abyss subwoofers come with a built-in Wireless Receiver and Wireless Transmitter, making it easier than ever to eliminate cable clutter. With lossless transmission and low latency, even the most discerning enthusiast will be thrilled with the results.



Please note that MartinLogan subwoofers do not come with a subwoofer cable. Customers will have to purchase a subwoofer cable separately or the MartinLogan WSK-1 Wireless Subwoofer Adaptor Kit.
