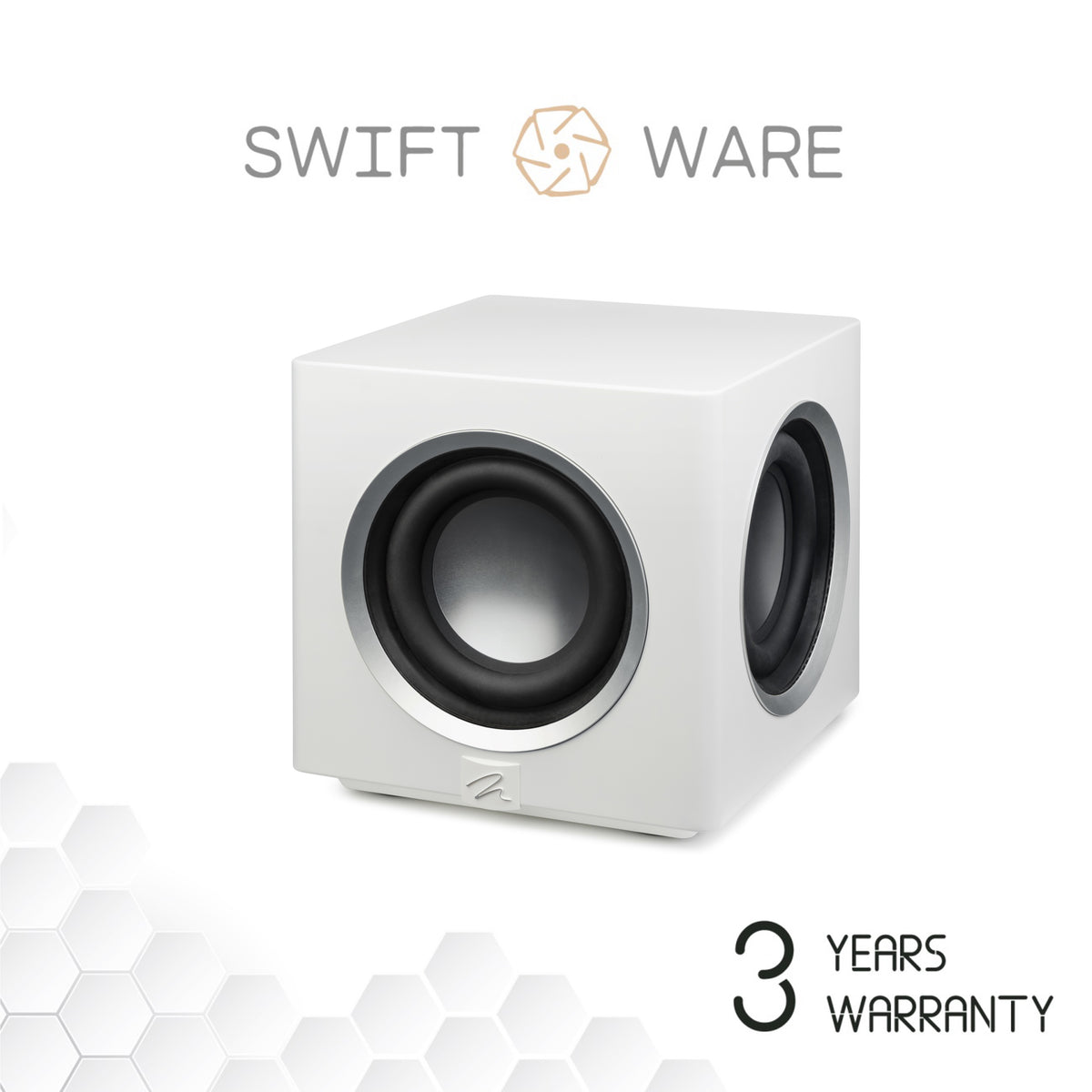

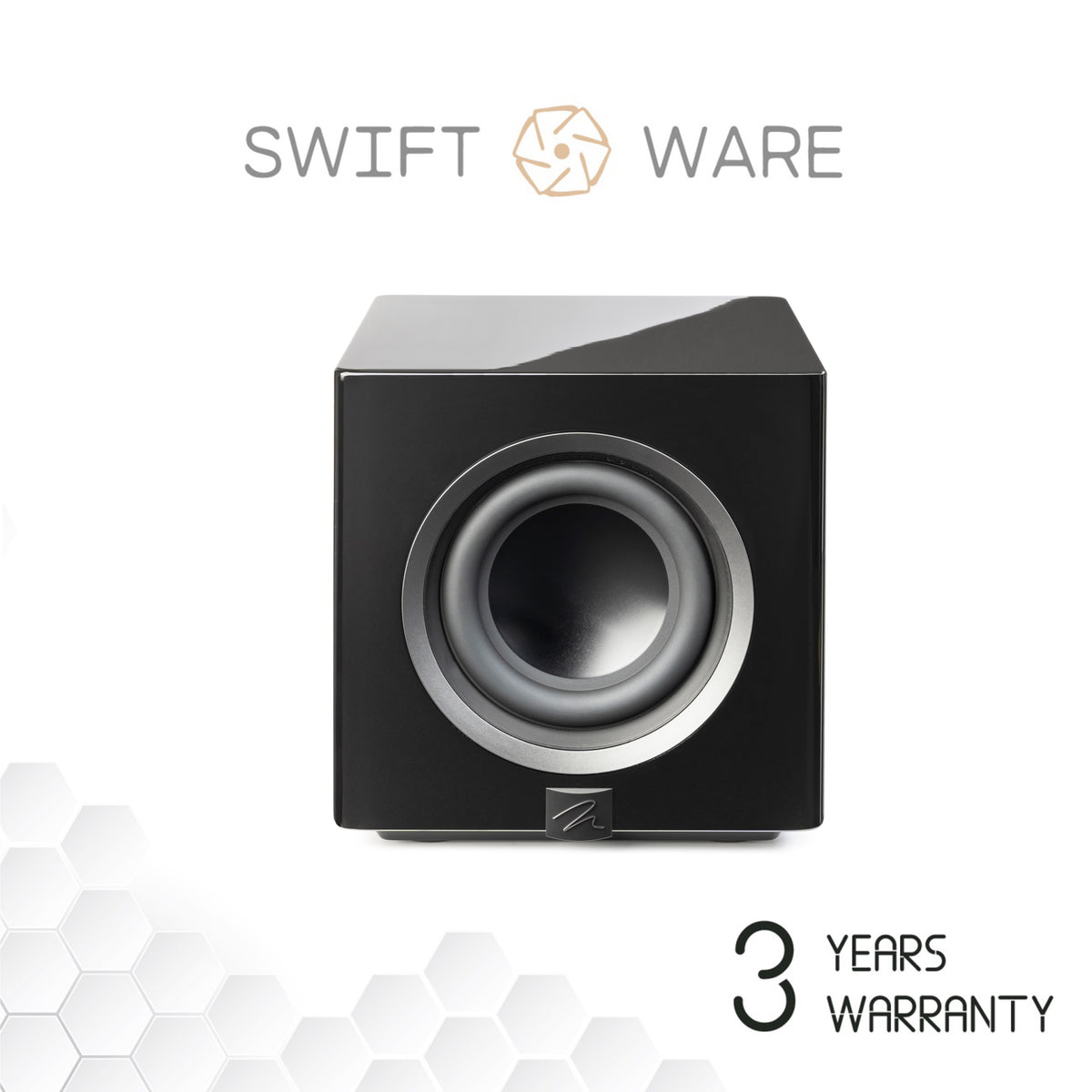

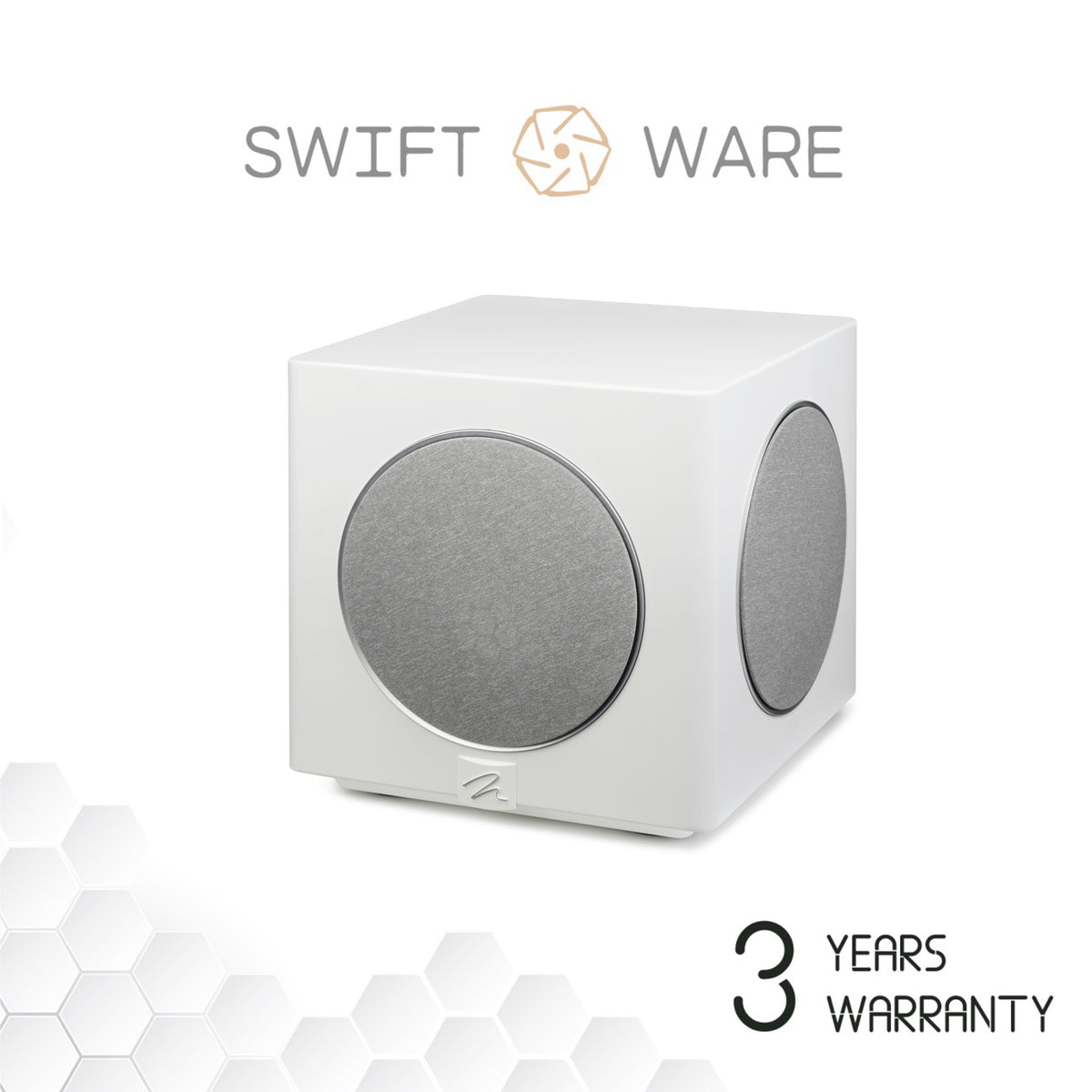

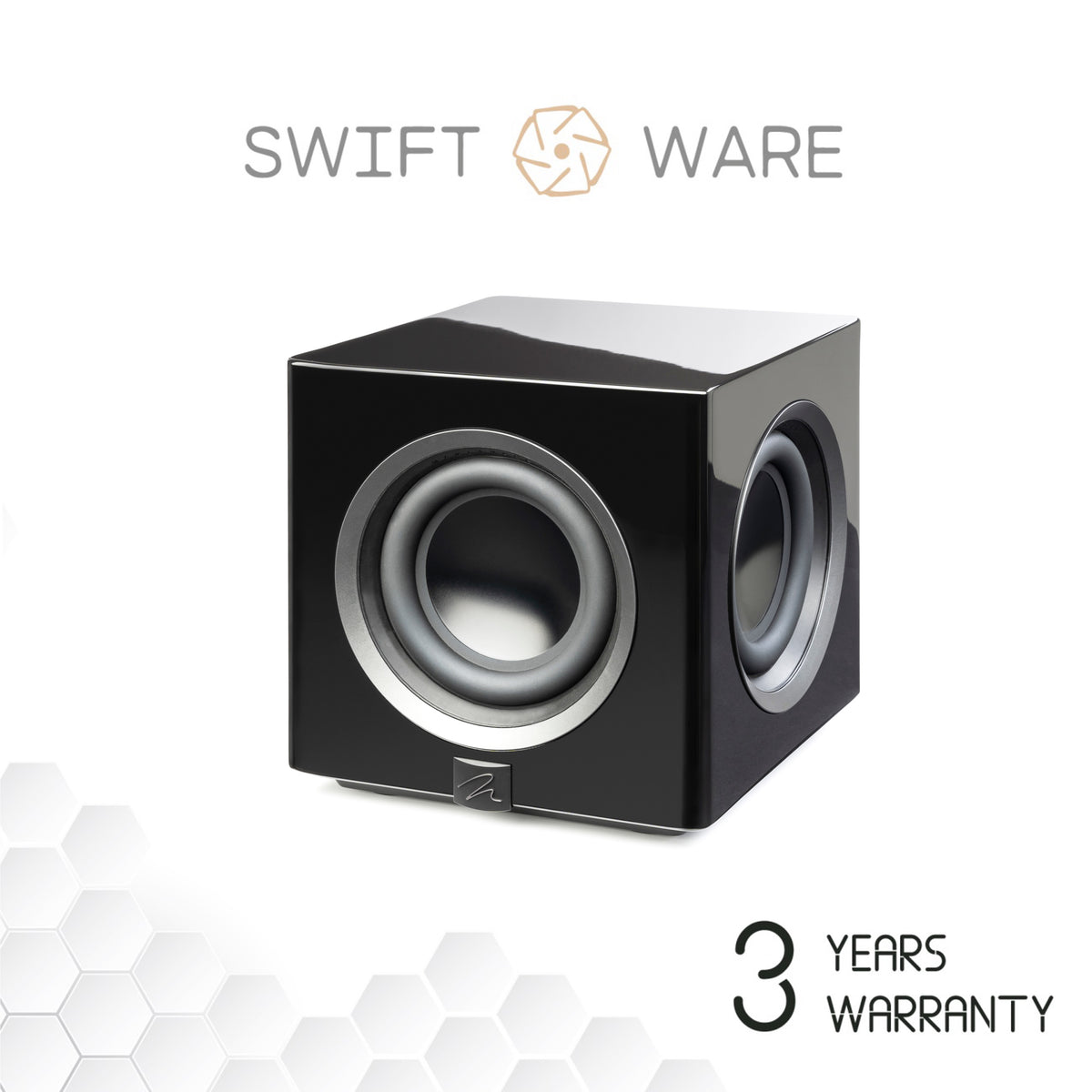

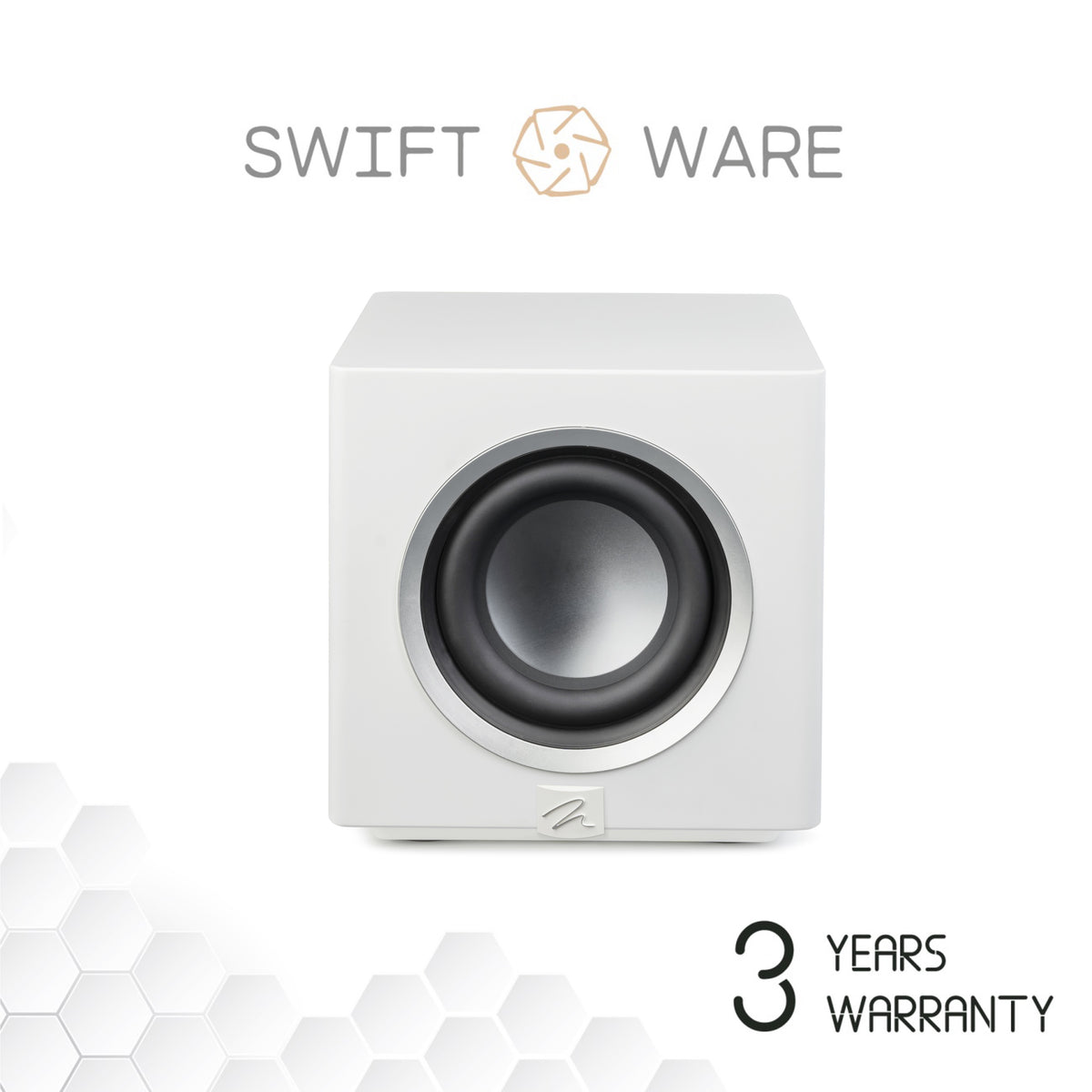

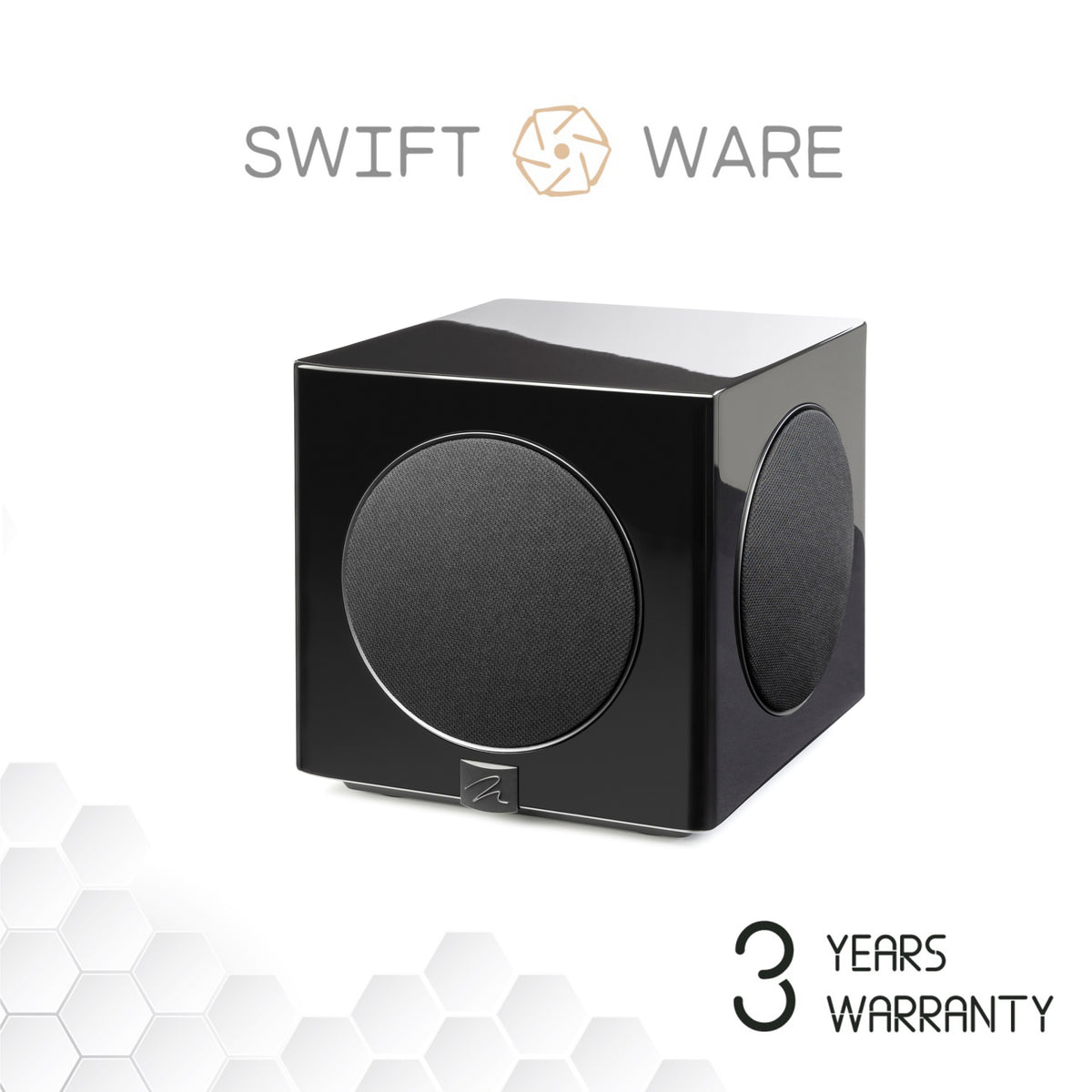

MartinLogan Abyss 8" Subwoofer

MartinLogan

Supercharged Performance. Miniaturised Size.

Abyss 8 is one of the smallest, most compact subwoofers that MartinLogan has ever built, but don't let its small footprint fool you. It is capable of bass completely unexpected from its ultra-compact size.

The key to its deceptively strong, yet detailed sound is its Hybrid Woofer System which utilises a pair of 8" passive radiators to bolster its active 8" woofer. This woofer system is driven by powerful amplification, and a precision DSP engine, all contained inside a beautiful, yet robust, 1" thick cabinet.

To complement the impressive power and musicality of Abyss 8, MartinLogan engineers included an array of connectivity options ranging from XLR to the built-in wireless option. Abyss 8 also features MartinLogan's powerful and intuitive control app for convenient setup and adjustment, as well as being compatible with the award-winning Anthem Room Correction (ARC®) system.

SPECIFICATIONS

Digital Signal Processing
Ultra High-Resolution 500MHz Vojtko DSP Engine with 65t processing

Frequency Response
23-120 Hz ±3 dB (Anechoic via LFE input)

Low Frequency Transducer
Triple 8" (20.3cm) Hybrid Woofer System consisting of a single high-excursion, anodised-aluminium cone in a stamped steel basket with dual anodised-aluminium passive radiators

Cabinet
Precision-crafted, sealed MDF enclosure featuring a robust 1-inch thick MDF structure with reinforced woofer baffles and center brace

Amplifier
Magnitude MT-1kW Amplifier with 1,000W peak (500W continuous)

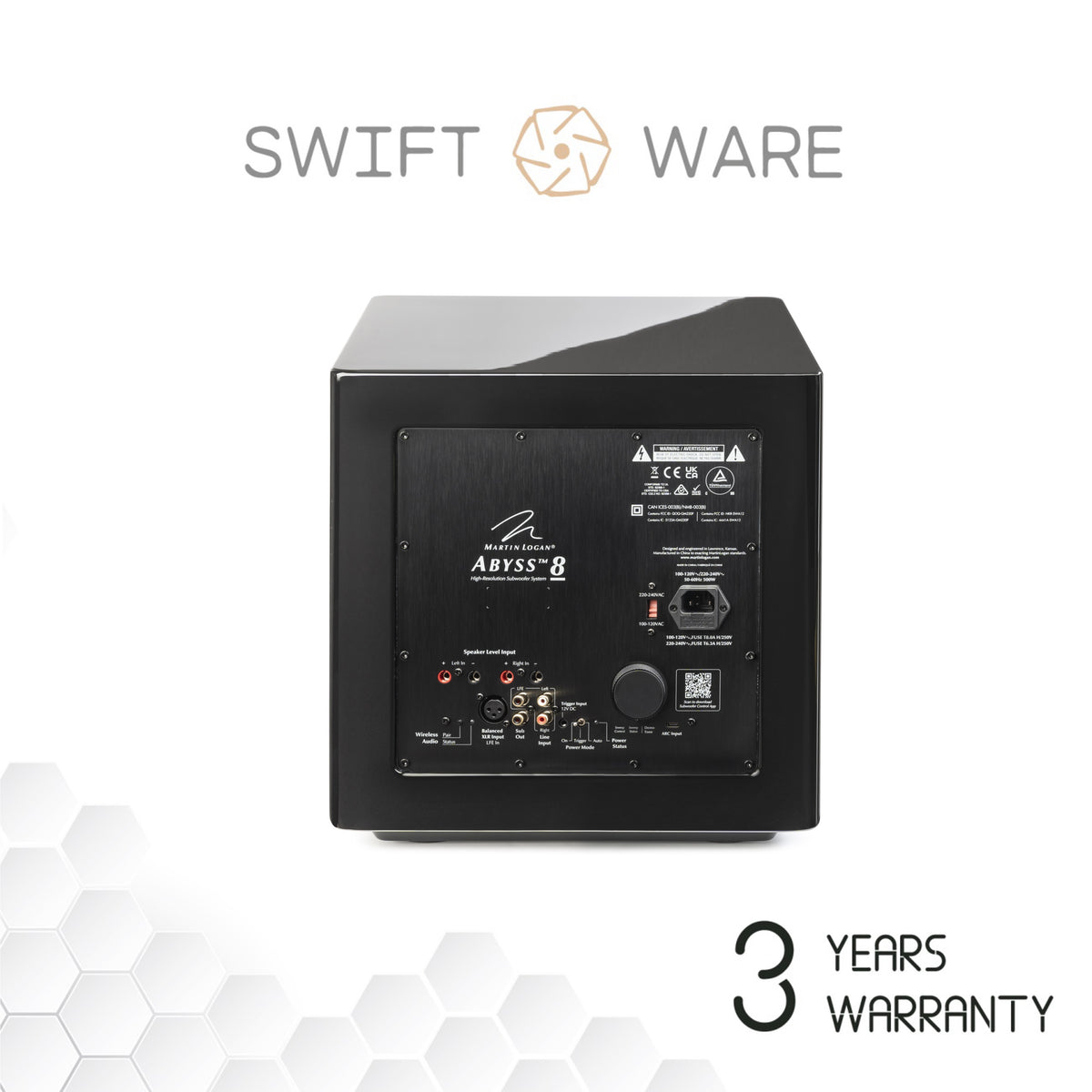

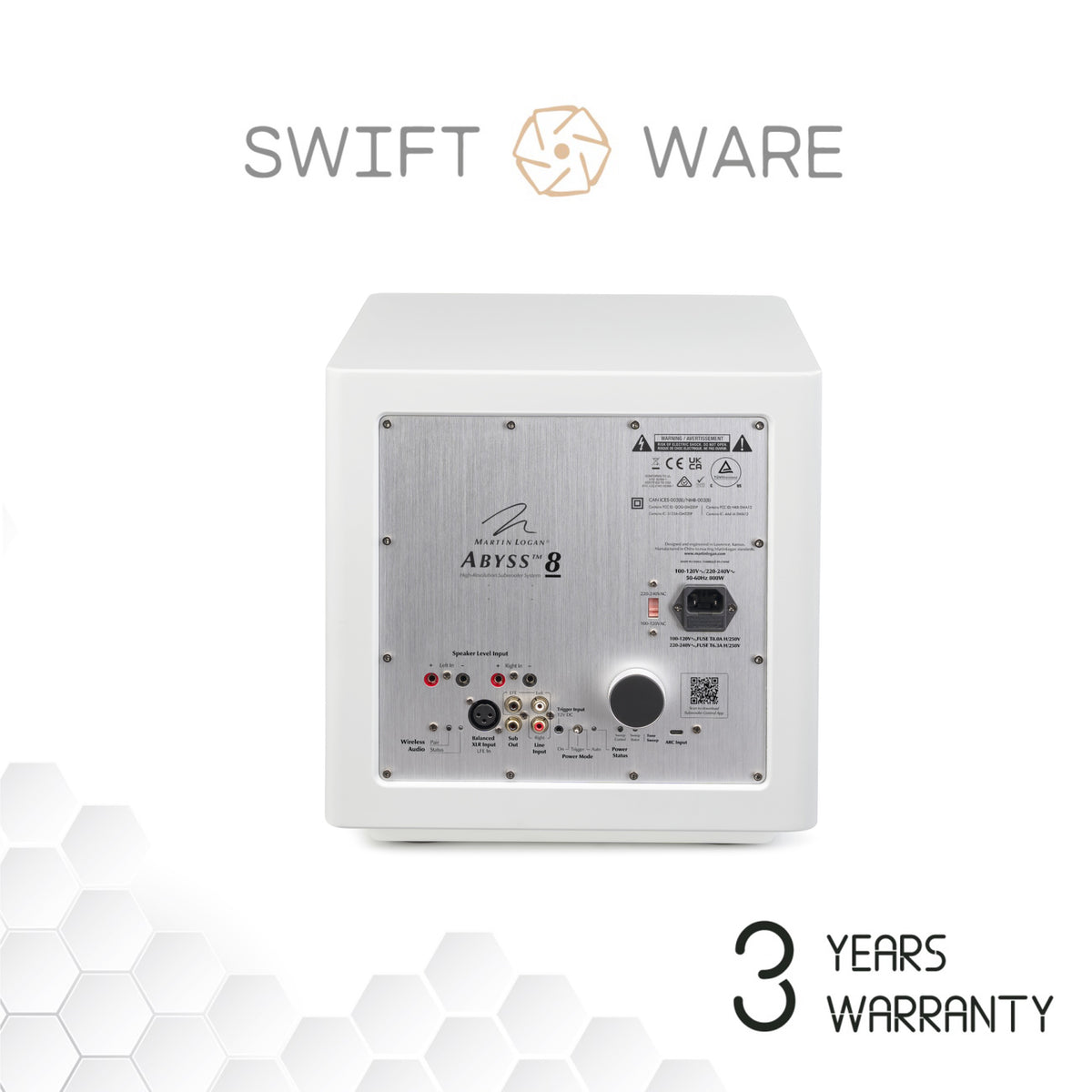

Controls (Backplate)
Level: Interactive LED Backlit Knob
Tone Sweep: Sweep Start and Pause (with status light)
Power Mode: On, 12v Trigger, Auto
Wireless Audio Pairing Button (for included MartinLogan wireless transmitter)

Controls (via Bluetooth)
Level: -40 to 12dB (Min-Max)
Low-Pass Filter (Frequency): 35–120Hz (1° Increments)
Low-Pass Filter (Order): Bypass, Third, Fourth
Phase: 0–180° (1° Increments)
Phase (Polarity): Normal, Inverted
Preset Listening Modes: Movie, Music, Night
20–30Hz Level: ±10dB
Anthem Room Correction (ARC Genesis): On, Off
Tone Sweep (120-20Hz): On, Off, Pause (Frequency)

Wireless Inputs
Integrated Wireless Receiver, Wireless Transmitter Included

Inputs
Line Level: Left, Right, and LFEXLR: LFE
Speaker Level: Left and Right (requires banana plugs)
Power DrawMax: 500W
Standby (Wireless Disabled): 0.5W
Standby (Wireless Enabled): <2W
*Transmitter and Subwoofer combined

Feet
Integrated Anti-Vibration Feet (carpet spikes included)

Fine-Tune Your Subwoofer Settings with MartinLogan's Intuitive App
